DC Electronic Loads

DC electronic loads accurately simulate the loading of a circuit. Each unit implements sink waveforms which are programmable for voltage, current and power.

When compared to a traditional resistive load bank, a programmable electronic load offers much greater functionality. Sink values of selected models can be adjusted in small increments into the milliamp range, under a variety of waveforms. Whereas, a resistive load bank typically has much less control. Traditional systems do not have the programmability necessary to recreate the complex load steps of real world applications.

Due to variance in user behaviour, the operating waveforms of DC devices can often have many irregular qualities. For example, when testing a discharging xEV battery pack, a cautious driver will create a vastly different waveform than an aggressive driver that accelerates fast and brakes hard. Our DC loads allow the complex loading of an electrical circuit to be precisely simulated.

Common operating features throughout the rental range include OVP/OCP tests, front panel memory as well as CC, CV, CR and CP modes. Rise, fall and plateau times are adjustable in dynamic mode. Grid-tied power recycling loads are available with an embedded function generator, which can create almost any complex DC waveform.

Our rental systems are commonly used for discharging batteries, fuel cell loading, product burn-in trials and testing DC power supplies. Application specific GUIs are available for the LAB-GSS, which allow the DC load to accurately simulate battery pack and capacitor characteristics when testing chargers.

Read more Close

Did you know...

  • We also provide a selection of new DC electronic loads.
  • If you require both DC sink and source functionality, bidirectional DC systems are available to purchase.
  • A current waveform generator is available for most of our DC loads. This allows the electronic load to sink different levels of energy over time.
Can't find what you're looking for?
Get in touch or give us a call on +44 (0)1246 452909
Quick View
G5-RSS

G5-RSS

HV Power Recycling Loads up to 162kW

Min Max
Power: 0 to 54kW 0 to 216kW
Voltage: 5 to 1000VDC 10 to 2000VDC Configurations >1500V are possible with a centre tapped earth.
Current: 0 to 162A 0 to 648A

Download datasheet

Quick View

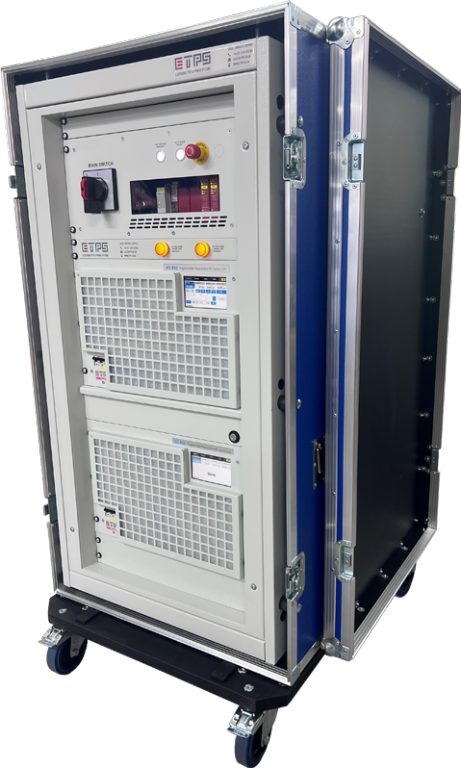

G5-RSS-HC

G5-RSS-HC

High Current High Power Load with DC Source

Min Max
Power: 0 to 36kW 0 to 72kW
Voltage: 1 to 80VDC 2 to 160VDC
Current: 0 to 1352A 0 to 2704A

Download datasheet

Quick View

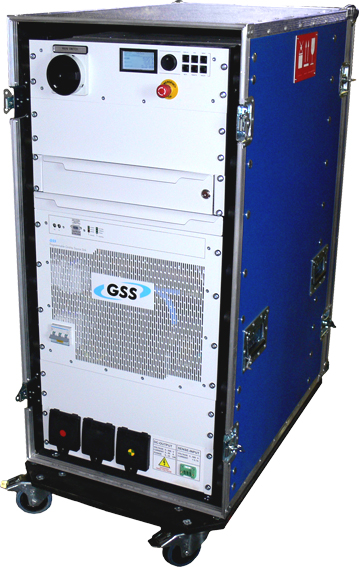

LAB-GSS

LAB-GSS

Power Recycling Load with Source Capability

Min Max
Power: 0 to 32kW 0 to 32kW
Voltage: 6 to 65VDC 6 to 65VDC
Current: 0 to 600A 0 to 600A

Download datasheet

Quick View
ELP-34105

ELP-34105

High Current High Power Loads

Min Max
Power: 0 to 5kW 0 to 10kW
Voltage: 0.7 to 60VDC 0.7 to 60VDC
Current: 0 to 1000A 0 to 2000A

Download datasheet

Quick View
ELPA-SINE

ELPA-SINE

Advanced DC Load with AC Functions

Min Max
Power: 0 to 3.75kW 0 to 3.75kW
Voltage: 50 to 500VDC 50 to 500VDC
Current: 0 to 37.5A 0 to 37.5A

Download datasheet

Quick View
ELP-3310

ELP-3310

Dynamic DC Electronic Load Modules

Min Max
Power: 0 to 75W 0 to 300W
Voltage: 0.3 to 60VDC 6 to 500VDC
Current: 0 to 5A 0 to 60A

Download datasheet

Quick View
ELPA-3252

ELPA-3252

DC Load Modules with AC Functions

Min Max
Power: 0 to 300W 0 to 300W
Voltage: 30 to 300VDC 30 to 300VDC
Current: 0 to 4A 0 to 4A

Download datasheet

Quick View
ELP-3330

ELP-3330

Dual Channel DC Load Modules

Min Max
Power: 0 to 75W 0 to 120W
Voltage: 2 to 60VDC 0.8 to 80VDC
Current: 0 to 5A 0 to 24A

Download datasheet
