Battery Cyclers
Our battery test systems will help supercharge your research schedule. Both modular and standalone systems are available up to high powers and voltages.
An isolated bidirectional circuit is formed between the test system and the battery pack. This allows performance issues to be identified and resolved in a repeatable environment. A variety of areas can be investigated including lifetime tests and performance degradation analysis. Abuse tests such as over-voltage, over-charging and forced discharge can also be conducted.
Software is available to record and implement specific charge/discharge cycles. Previous experimental data can be imported and recreated, allowing a selection of common user profiles to be established. Profiles can be ran on automated loops to perform lifetime analysis. Integration with PHIL systems is also possible.
The G5-CYCLER allows users to simulate an AC ripple on a DC battery link. A current ripple can be set up to 10kHz, up to 5% of the nominal system current. Depending on the impedance of the DUT the resulting voltage ripple can be calculated. Alternatively, a ripple can be implemented from an external waveform generator via the analogue interface using a proportional 0-10V signal.
If your premises has limited mains infrastructure, then the LAB-MOBI could be the perfect solution. Each system has up to four independently controllable channels with a common DC link. Power can be directly recycled between channels above the system’s nominal power. For example, a 250kW system can sink up to 1MW from a battery pack in one channel and use the energy directly for charging in the second when back-to-back testing.
Read more CloseDid you know...
- We have a dedicated range of programmable DC sources for unidirectional charging tests.
- Many of our DC electronic loads are available with an inbuilt battery discharge tests.
- If you need something non-standard, we will look to provide a custom unit. Common adaptations include bespoke output ranges, flight case integrations and ruggedised systems.

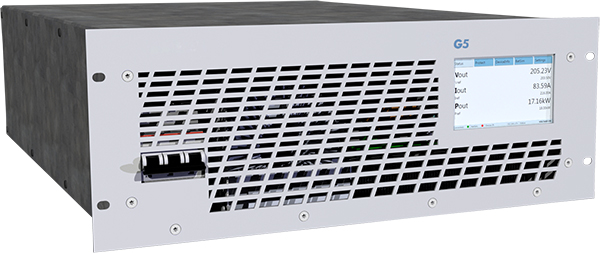

G5-CYCLER
High Voltage Modular Battery Cyclers
Min | Max | |
---|---|---|
Power: | 0 to 9kW | 0 to 5MW This maximum is achieved by using units in master-slave. |
Voltage: | 0 to 500VDC | 0 to 3000VDC Configurations >1500V are possible with a centre tapped earth. |
Current: | 0 to ±54A | 0 to ±12960A This maximum is achieved by using units in master-slave. |
G5-CYCLER
High Voltage Modular Battery Cyclers
Min | Max | |
---|---|---|
Power: | 0 to 9kW | 0 to 5MW This maximum is achieved by using units in master-slave. |
Voltage: | 0 to 500VDC | 0 to 3000VDC Configurations >1500V are possible with a centre tapped earth. |
Current: | 0 to ±54A | 0 to ±12960A This maximum is achieved by using units in master-slave. |
Standard Control: | Analogue, CAN, Ethernet, USB |
---|---|
Optional Control: | Touchscreen HMI, EtherCAT |
G5-CYCLER modules are stackable from low powers and voltages up to 3kV/5MW with mains recycling. Advanced charge/discharge cycles can be programmed through the optional BatControl software or function generator.

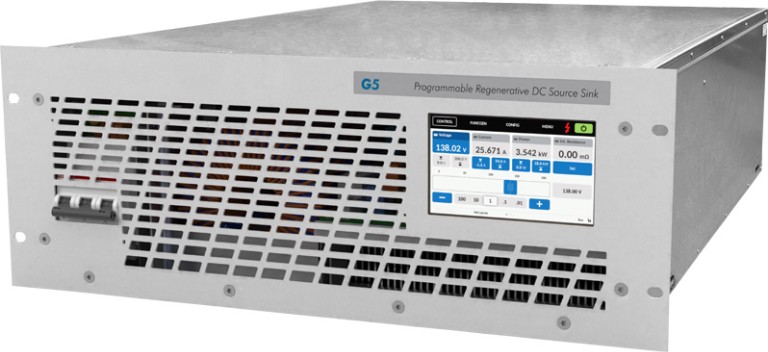

G5-CYCLER-HC
High Current Modular Battery Cyclers
Min | Max | |
---|---|---|
Power: | 0 to 9kW | 0 to 5MW This maximum is achieved by using units in master-slave. |
Voltage: | 0 to 60VDC 60V SELV modules are optionally available. | 0 to 1280VDC Configurations >640V are possible with a centre tapped earth. |
Current: | 0 to ±338A | 0 to ±89232A This maximum is achieved by using units in master-slave. |
G5-CYCLER-HC
High Current Modular Battery Cyclers
Min | Max | |
---|---|---|
Power: | 0 to 9kW | 0 to 5MW This maximum is achieved by using units in master-slave. |
Voltage: | 0 to 60VDC 60V SELV modules are optionally available. | 0 to 1280VDC Configurations >640V are possible with a centre tapped earth. |
Current: | 0 to ±338A | 0 to ±89232A This maximum is achieved by using units in master-slave. |
Standard Control: | Analogue, CAN, Ethernet, USB |
---|---|
Optional Control: | Touchscreen HMI, EtherCAT |
With the ability to provide charge/discharge currents into the kiloamp range, the G5-CYCLER-HC is ideal for cycling hybrid energy storage devices. Modules are stackable to 5MW with mains recycling.

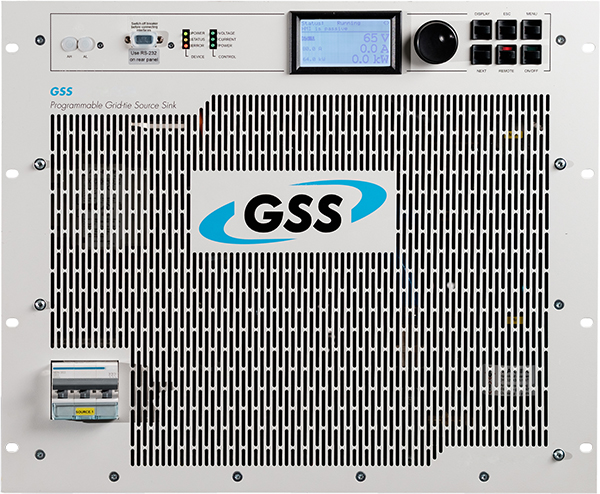

LAB-GSS
High Current Modular Battery Cyclers
Min | Max | |
---|---|---|
Power: | 0 to 20kW | 0 to 2MW This maximum is achieved by using units in master-slave. |
Voltage: | 0 to 65VDC | 0 to 1500VDC This maximum is achieved by using units in master-slave. |
Current: | 0 to ±40A | 0 to ±38400A This maximum is achieved by using units in master-slave. |
LAB-GSS
High Current Modular Battery Cyclers
Min | Max | |
---|---|---|
Power: | 0 to 20kW | 0 to 2MW This maximum is achieved by using units in master-slave. |
Voltage: | 0 to 65VDC | 0 to 1500VDC This maximum is achieved by using units in master-slave. |
Current: | 0 to ±40A | 0 to ±38400A This maximum is achieved by using units in master-slave. |
Standard Control: | Analogue, RS-232 |
---|---|
Optional Control: | HMI, CAN, Ethernet, IEEE 488.2, Optolink, RS-422, USB |
Up to 64 LAB-GSS modules can be arranged in series, parallel or matrix configurations. Allowing a wide variety of batteries to be tested. Each system is bidirectional and can provide user specific charge/discharge cycles.

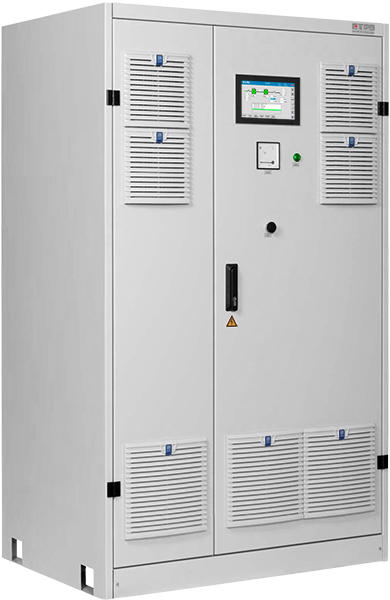

LAB-SCUBI
High Power Battery Pack Cycler
Min | Max | |
---|---|---|
Power: | 0 to 60kW | 0 to 1.3MW This maximum is achieved by using units in master-slave. |
Voltage: | 0 to 300VDC | 0 to 1000VDC |
Current: | 0 to ±200A | 0 to ±2000A This maximum is achieved by using units in master-slave. |
LAB-SCUBI
High Power Battery Pack Cycler
Min | Max | |
---|---|---|
Power: | 0 to 60kW | 0 to 1.3MW This maximum is achieved by using units in master-slave. |
Voltage: | 0 to 300VDC | 0 to 1000VDC |
Current: | 0 to ±200A | 0 to ±2000A This maximum is achieved by using units in master-slave. |
Standard Control: | Touchscreen HMI, CAN, Ethernet, MODBUS |
---|---|
Optional Control: | Analogue, PROFIBUS, PROFINET |
Each high power battery test system is bidirectional, with the ability to implement battery charge/discharge cycles. When operating as a discharger, selected models will operate from 1000V to 5V without current derating.

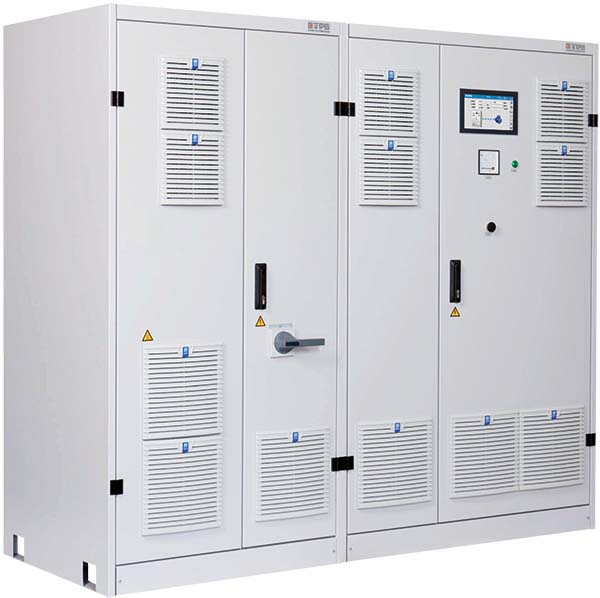

LAB-MOBI
Multi-Channel Battery Pack Cycler
Min | Max | |
---|---|---|
Power: | 0 to 60kW | 0 to 650kW |
Voltage: | 0 to 300VDC | 0 to 1000VDC |
Current: | 0 to ±200A | 0 to ±4000A This maximum is achieved by combining channels in parallel. |
LAB-MOBI
Multi-Channel Battery Pack Cycler
Min | Max | |
---|---|---|
Power: | 0 to 60kW | 0 to 650kW |
Voltage: | 0 to 300VDC | 0 to 1000VDC |
Current: | 0 to ±200A | 0 to ±4000A This maximum is achieved by combining channels in parallel. |
Standard Control: | Touchscreen HMI, CAN, Ethernet, MODBUS |
---|---|
Optional Control: | Analogue, PROFIBUS, PROFINET |
Each bidirectional charge/discharge system is built with 2 or 4 output channels, with nominals up to 1000V/1000A. Energy can be recycled between DC channels above the unit's nominal power when back-to-back battery testing.
