Current Shunts

Where the need for stability is supreme, our range of high precision current shunts provide the best tools for the job.

Current shunts are used to measure electrical currents from a small voltage drop created across a high precision resistor placed in series with a load.

All ETPS models feature 5 ultra-stable shunts, with the appropriate resistor selected by the simple push of a button. This allows for multiple loads to be connected to a unit’s different input terminals at the same time, while remaining isolated from each other.

Each unit has an AC/DC current meter as standard which displays the respective shunt current. If higher accuracies are needed, then a single set of binding posts can conveniently provide the output voltage to an external voltmeter.

The compact models are built in desktop cases with retractable feet for ease of use. A 19" rackmouting kit is available for all systems should you require to mount the units into a cabinet or flight case. Computer interfaces can be specified for selected models including USB, RS-232, IEEE 488.2 and Ethernet.


Read more Close

Did you know...

  • We have a wide selection of programmable AC and DC sources for power testing.
Can't find what you're looking for?
Get in touch or give us a call on +44 (0)1246 452909
Quick View
GT-2000A

GT-2000A

High Current AC/DC Current Shunt

Min Max
Current: 0.02 to 2000A 0.02 to 2000A
Shunt: 0.01 to 1000mΩ 0.01 to 1000mΩ
Voltage: 20/200mV 20/200mV

Download datasheet

Quick View

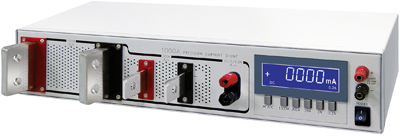

GT-1000A

GT-1000A

High Precision AC/DC Current Shunt

Min Max
Current: 0.02 to 1000A 0.02 to 1000A
Shunt: 0.1 to 1000mΩ 0.1 to 1000mΩ
Voltage: 100/200mV 100/200mV

Download datasheet

Quick View
GT-7550

GT-7550

Laboratory Current Shunt

Min Max
Current: 0.02 to 200A 0.02 to 200A
Shunt: 1 to 10000mΩ 1 to 10000mΩ
Voltage: 200mV 200mV

Download datasheet
