Rugged DC Power Supplies

Sourcing reliable DC power supplies for mission critical equipment can be a constant battle. ETPS have a long history of providing ruggedised solutions to meet harsh environmental requirements.

Many vehicles and ships are regularly exposed to shock, vibration and humidity which a typical laboratory power supply is not designed to handle. Every day our heavy-duty systems are trusted to power electrical equipment for surface boats, military vehicles, submarines, downhole tools and many more critical applications.

Product families such as the RUG-HP-E are well proven in the field. Mechanical features of the unit protect against shock, vibration and condensing moisture. Each unit features a programmable voltage and current output. The small footprint and highly competitive cost per kW make them a popular choice for many users.

For applications which are likely to experience extreme levels of shock and vibration, the RUG-TC is the ideal choice. The DC source has been tested to withstand up to 20g of mechanical shock across X, Y and Z axes. The system’s wide input range allows it to operate from an AC generator. An operating temperature as low as -10°C all the way up to 55°C is possible.

Where low reflected current harmonics are imperative, the RUG-GSX features typical values of <1% at nominal load. Typical applications include providing the DC energy to the coils powering ship sonar systems. The power supply has an inbuilt active power correction of ≥0.99. This allows for smaller components and cabling throughout the relevant circuit, perfect for when space is at a premium.

Read more Close

Did you know...

  • Our selection of fixed output AC-DC rectifiers are regularly ruggedised for rail and shipborne applications.
  • If you don't need a power system specifically built for a harsh environment, we also have a range of programmable laboratory DC sources.
  • If you need something non-standard, we can look to provide a custom unit. Common adaptations include bespoke output ranges and flight case integrations.
Can't find what you're looking for?
Get in touch or give us a call on +44 (0)1246 452909
Quick View

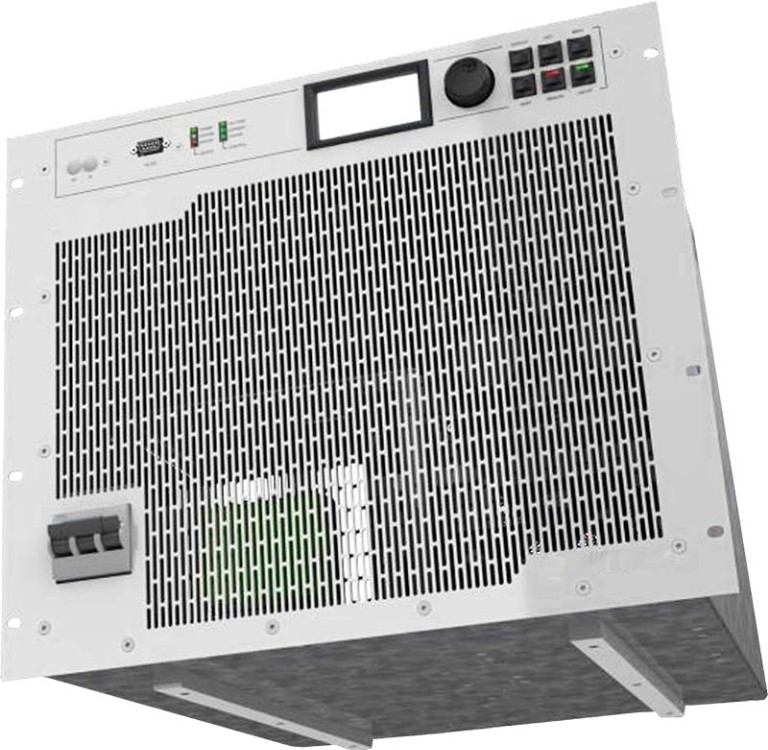

RUG-TC

RUG-TC

Rugged Modular DC Power Supplies

Min Max
Power: 0 to 10kW 0 to 2MW This maximum is achieved by using units in master-slave.
Voltage: 0 to 52VDC 0 to 2000VDC Configurations >1500V are possible with a centre tapped earth.
Current: 0 to 13A 0 to 44800A This maximum is achieved by using units in master-slave.

Download datasheet

Quick View

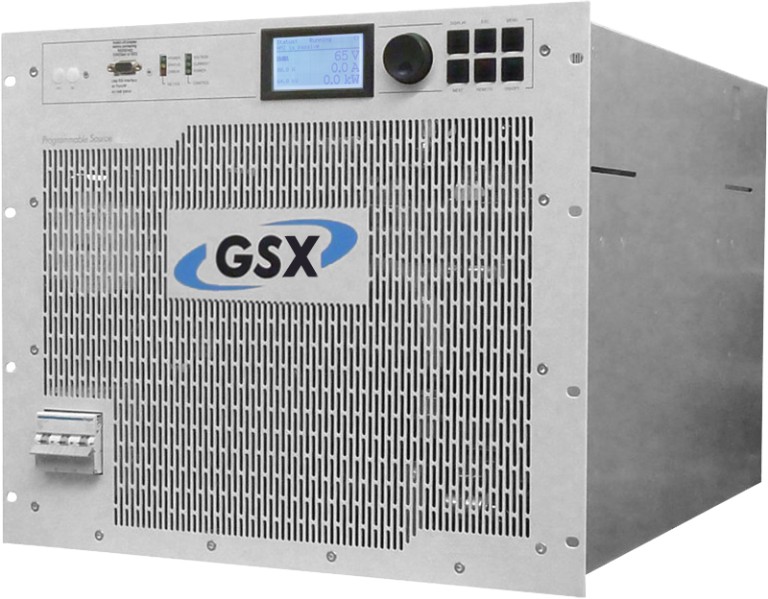

RUG-GSX

RUG-GSX

DC Sources with Low Reflected Harmonics

Min Max
Power: 0 to 20kW 0 to 2MW This maximum is achieved by using units in master-slave.
Voltage: 0 to 65VDC 0 to 1500VDC This maximum is achieved by using units in master-slave.
Current: 0 to 40A 0 to 38400A This maximum is achieved by using units in master-slave.

Download datasheet

Quick View

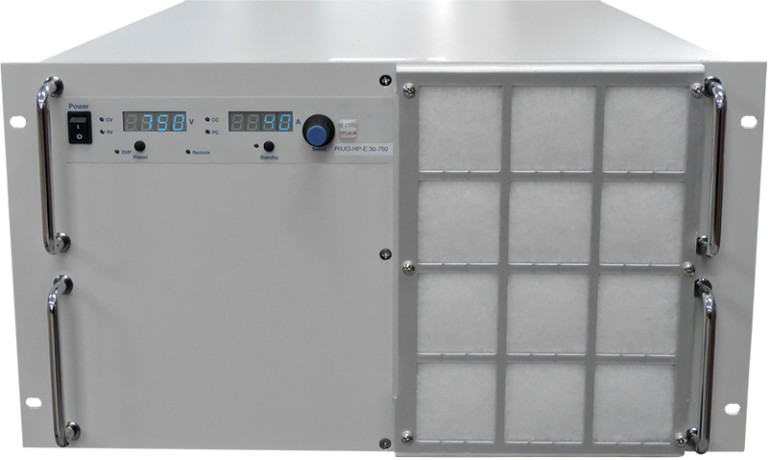

RUG-HP-E

RUG-HP-E

Rugged DC Power Supplies

Min Max
Power: 0 to 3kW 0 to 504kW Non-standard builds are possible, contact us for information.
Voltage: 0 to 15VDC 0 to 2000VDC Different nominals can be selected via the options table.
Current: 0 to 4.7A 0 to 18000A Non-standard builds are possible, contact us for information.

Download datasheet
