High Voltage Power
Our rental high voltage PSUs provide highly stable outputs up to 20kVDC. Precision units are available with adjustable current into the microamp range.
Programmable voltage ramps are possible, which allow specific output profiles to be achieved. Both positive and negative polarity models are available.
Due to their exceptional technical features, high voltage PSUs from ETPS are commonly used in high energy physics and nuclear test environments. Specific applications include powering silicon photomultipliers and mass spectrometers, as well as generating X-rays and plasma.
All of our high voltage power supplies are built with advanced resonance mode technology. This makes them among the lightest, smallest and most efficient units on the market. Various case styles are available including 6U cassettes, desktop units and compact modules.
Read more CloseDid you know...
- We also provide a selection of new high voltage power supplies.
- High power systems up to 2000V are available in our DC power supply rental range.

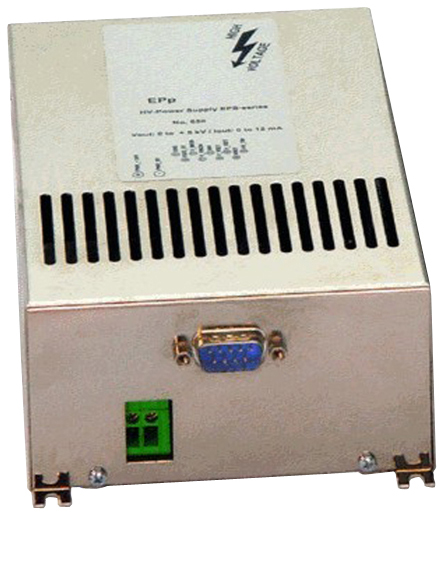

HTP-EPS
5kV Module with Negative Polarity
| Min | Max | |
|---|---|---|
| Power: | 0 to 60W | 0 to 60W |
| Voltage: | 0 to -5kV | 0 to -5kV |
| Current: | 0 to 12mA | 0 to 12mA |
HTP-EPS
5kV Module with Negative Polarity
| Min | Max | |
|---|---|---|
| Power: | 0 to 60W | 0 to 60W |
| Voltage: | 0 to -5kV | 0 to -5kV |
| Current: | 0 to 12mA | 0 to 12mA |
| Standard Control: | Analogue |
|---|---|
| Form Factor: | Module |
This HTP-EPS power supply offers voltages up to 5kVdc supplied at 60W. The unit is built into a compact module. Control and measurement is achieved with an analogue signal. A bare ended HV cable provides the output.

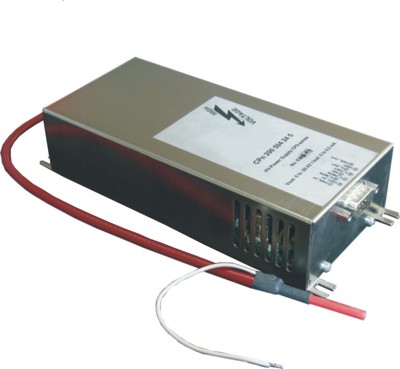

HTP-CPS
HV Modules with Highly Stable Outputs
| Min | Max | |
|---|---|---|
| Power: | 0 to 10W | 0 to 10W |
| Voltage: | 0 to +5kV | 0 to -20kV |
| Current: | 0 to 500μA | 0 to 2mA |
HTP-CPS
HV Modules with Highly Stable Outputs
| Min | Max | |
|---|---|---|
| Power: | 0 to 10W | 0 to 10W |
| Voltage: | 0 to +5kV | 0 to -20kV |
| Current: | 0 to 500μA | 0 to 2mA |
| Standard Control: | Analogue |
|---|---|
| Form Factor: | Module |
HTP-CPS modules feature a maximum output of either +5kV to -20kV. Rated at 10W, these units provide a very stable output with low ripple and noise. The output voltage and current limits are set over the analogue interface.
