DC-DC Converters
Our DC-DC converter platforms transform one voltage level to another. A broad choice of power ranges are possible, with outputs up to 1500V.
High conversion efficiencies and floating outputs are common throughout the range. Many of our products have a wide input voltage range, some as much as ±40% of the nominal. Every ETPS unit is built to last, with selected converters having MTBF figures of 750,000 hours. Many models also feature galvanic isolation.
Our most rugged designs are capable of operating in ambient temperatures as low as -40°C and as high +85°C. A variety of case styles are available to help ensure suitability in rail and telecoms installations, as well as being embedded in industrial and military control systems.
The unidirectional high power CON-HP-E can be built with user specified inputs and outputs. Any nominal input voltage is possible between 250-750V, with a ±10% tolerance. So for example, a 600V nominal will operate from 540V-660V. Programmable outputs up to 1500V are available.
Modular CON-DSS units feature an adjustable input/output on the low side. The bidirectional converter's V and I slopes can be set and protection levels tweaked, to ensure it is optimised for a specific load. A high speed 1kHz CAN interface is available, which is popular in automotive and energy storage research.
Read more CloseDid you know...
- Selected models in our dedicated battery charger range feature a DC input.
- We offer specialist low power high voltage DC-DC converters up to 30kV, particularly popular in physics applications.
- If you can’t find what you’re looking for then we can look to provide a custom solution.

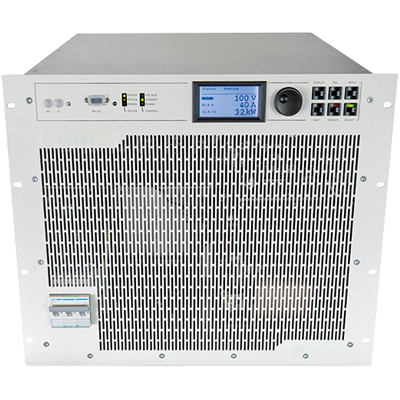

CON-DSS
Bidirectional DC-DC Converter
| Min | Max | |
|---|---|---|
| Power: | 0 to 20kW | 0 to 2MW This maximum is achieved by using units in master-slave. |
| Input: | 735 to 765VDC | 800 to 830VDC |
| Output: | 0 to 58.5VDC | 0 to 1500VDC This maximum is achieved by using units in master-slave. |
CON-DSS
Bidirectional DC-DC Converter
| Min | Max | |
|---|---|---|
| Power: | 0 to 20kW | 0 to 2MW This maximum is achieved by using units in master-slave. |
| Input: | 735 to 765VDC | 800 to 830VDC |
| Output: | 0 to 58.5VDC | 0 to 1500VDC This maximum is achieved by using units in master-slave. |
| Control: | Standard: Analogue, RS-232 | Options Available incl. CAN |
|---|---|
| Output: | Programmable Bidirectional |
The CON-DSS is modular bidirectional DC-DC Converter. The low side of the converter features a user adjustable input/output, making it ideal for many applications. As standard each module is built with isolated analogue and RS-232 interfaces.

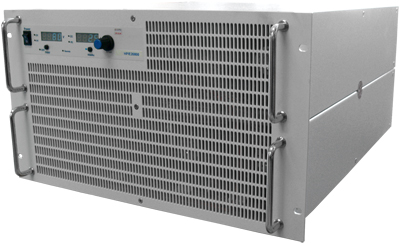

CON-HP-E
Programmable High Power Converter
| Min | Max | |
|---|---|---|
| Power: | 0 to 3kW | 0 to 504kW Non-standard builds are possible, contact us for information. |
| Input: | 225 to 275VDC Different nominals can be selected via the options table. | 675 to 825VDC Different nominals can be selected via the options table. |
| Output: | 0 to 15VDC Different nominals can be selected via the options table. | 0 to 2000VDC Different nominals can be selected via the options table. |
CON-HP-E
Programmable High Power Converter
| Min | Max | |
|---|---|---|
| Power: | 0 to 3kW | 0 to 504kW Non-standard builds are possible, contact us for information. |
| Input: | 225 to 275VDC Different nominals can be selected via the options table. | 675 to 825VDC Different nominals can be selected via the options table. |
| Output: | 0 to 15VDC Different nominals can be selected via the options table. | 0 to 2000VDC Different nominals can be selected via the options table. |
| Control: | Standard: HMI, Ethernet, Isolated Analogue, RS-232 | Options Available |
|---|---|
| Output: | Programmable Unidirectional |
The CON-HP-E is an incredibly versatile platform. Any nominal input voltage is possible between 250VDC-750VDC, with a ±10% tolerance. User specified programmable outputs from 0-15VDC up to 0-1500VDC are also available.

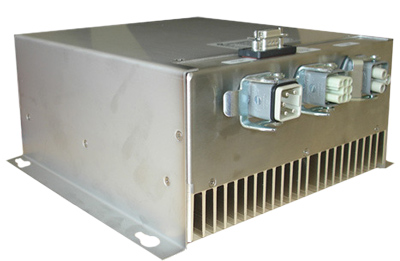

CON-900-K3
DC-DC Converter for Critical Applications
| Min | Max | |
|---|---|---|
| Power: | 900W | 900W |
| Input: | 16 to 32VDC | 77 to 143VDC |
| Output: | 24VDC A factory fixed voltage between 20 to 30VDC is available. | 24VDC A factory fixed voltage between 20 to 30VDC is available. |
CON-900-K3
DC-DC Converter for Critical Applications
| Min | Max | |
|---|---|---|
| Power: | 900W | 900W |
| Input: | 16 to 32VDC | 77 to 143VDC |
| Output: | 24VDC A factory fixed voltage between 20 to 30VDC is available. | 24VDC A factory fixed voltage between 20 to 30VDC is available. |
| Control: | Standard: RS-232 |
|---|---|
| Output: | Fixed Unidirectional |
These wall mounting units operate from a 24VDC or 110VDC input, providing an isolated and floating output at 24VDC. A windows based monitoring program provides details of actual output values along with the preset thresholds.

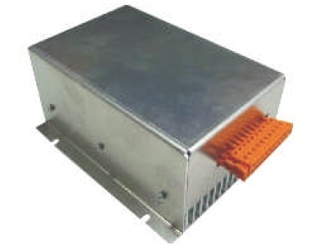

CON-300W
Rail Approved Converter
| Min | Max | |
|---|---|---|
| Power: | 300W | 300W |
| Input: | 38 to 72VDC | 77 to 150VDC |
| Output: | 22 to 26VDC | 58 to 62VDC |
CON-300W
Rail Approved Converter
| Min | Max | |
|---|---|---|
| Power: | 300W | 300W |
| Input: | 38 to 72VDC | 77 to 150VDC |
| Output: | 22 to 26VDC | 58 to 62VDC |
| Control: | Standard: Potential Free Alarm Contacts |
|---|---|
| Output: | Fixed Unidirectional |
This range of wall mounting DC-DC converters provide a stabilised floating output which is isolated from the input. Tolerance to shock and vibration according to EN50155 is makes these units ideal for use on railroad rolling stock.
CON-EURO
Euro Cassette Converter
| Min | Max | |
|---|---|---|
| Power: | 50W | 300W |
| Input: | 16.8 to 31.2VDC | 77 to 143VDC |
| Output: | 5VDC | 110VDC |
CON-EURO
Euro Cassette Converter
| Min | Max | |
|---|---|---|
| Power: | 50W | 300W |
| Input: | 16.8 to 31.2VDC | 77 to 143VDC |
| Output: | 5VDC | 110VDC |
| Control: | Standard: Potential Free Alarm Contacts |
|---|---|
| Output: | Fixed Unidirectional |
This range of 19" plug-in units have been designed for applications that demand high reliability in harsh operating conditions. They can operate in ambient temperatures of -40°C to +85°C. Further ruggedised is available on request.
