High Power DC Sources
High Power DC Sources
LAB-HP systems can be operated in CC, CV, CP and CR modes. Each unit has RS-232 and isolated analogue interfaces with switchable ranging for remote control.
|Power:||0 to 5kW||0 to 30kW|
|Voltage:||0 to 40VDC||0 to 150VDC|
|Current:||0 to 70A||0 to 500A|
|Standard Control:||Model Specific|
or call +44 (0)1246 452909 to discuss this product
A 10 turn digitally encoded potentiometer allows for straight forward front panel operation. Most units have a large blue LCD screen that displays relevant output quantities simultaneously, with the exception of the LAB-HP 540 which has an LED display.
Output values can be preset and read prior to releasing the output. The power supply can be operated in CC, CV, CP, CR and PV modes. Each unit is built with an RS-232 and isolated analogue interface with switchable ranging for remote control of the PSU.
- CV, CC, CP, CR and PVsim Modes
- RS-232 and Analogue Interfaces
- Simple Front Panel Operation
- Memory Card Slot Possible
- Operating GUI
All models except the LAB-HP 540 can be operated in constant current, voltage, power, and resistance modes. The adjustable internal resistance make this range ideal for automotive simulation as well as general laboratory and production work.
A PV operation mode is also provided as standard for all models except the LAB-HP 540. This enables a photovoltaic generator's MPP tracking to be simulated. The MPP is available in both voltage and current modes.
The LAB-HP 540 features constant current and constant voltage modes only.
A three phase AC input cable is provided for all units.
Interfaces and Control
Front Panel HMI
A large blue LCD display is provided for all models except the LAB-HP 540, which indicates all relevant output quantities simultaneously. Output values can be preset and read prior to releasing the output. The LAB-HP 540 has an LED screen.
Each unit has an RS-232 and isolated analogue interface as standard. Additional computer control interfaces are provided with selected models which includes USB, Ethernet and IEEE 488.2. Please contact ETPS if you require a specific interface.
An SD card slot is provided with selected models. This is a useful feature to enable the DC Source to follow pre-determined voltage and current curves. Data is programmed on a PC using text or .WAV formats. It can then be simply transferred to an SD card and recalled from the front panel of the LAB-HP.
The data card can also be used for data logging. Output values can be recorded at intervals of 1 sec to 71 mins. The front panel display indicates when the unit is logging data and will alert the user when the memory card becomes full.
Operating software can be provided with selected models. Live values of the power systems can be be viewed remotely in a simple and intuitive way. This is particularly useful when operating the power supply in a location that is remote to the DUT.
Voltage, current, power and resistance values can all be controlled through the GUI. A test sequence function allows for more complex DC waveforms to be implemented directly through the software.
APPLICATION SPECIFIC GUIs
A specialised PV simulation software package is also provided with certain LAB-HP models. This allows the power system to simulate a generator's MPP tracking in both current and voltage modes. The software contains many pre-loaded solar panels from different manufacturers.
Safety and Protection
Selected models feature a soft interlock circuit allows users to connect the unit to an external safety device, such as an emergency stop. This feature requires a high signal (+10V) to be present between two pins, otherwise the output will be shutdown.
Form Factor and Enclosures

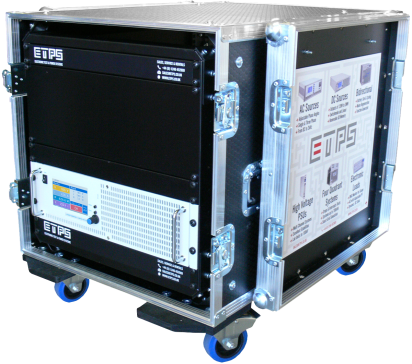

Each LAB-HP system is supplied in its own wheeled flight case for ease of transport.
