EtherCAT for DC Power Systems

15th December 2023

EtherCAT for DC Power Systems

All of our advanced G5 modular systems are now available with an EtherCAT interface. This includes high voltage models (500V to 3kV) and high current variants (starting at 60V, current up to 89kA).

EtherCAT enables users to transfer large amounts of data in a single cycle, with transmission rates up to 1kHz. The communication protocol is customisable, allowing users to hone the interface to their specific requirements.

The relevant G5 product families can be found below:

G5-RSS Bidirectional DC High Voltage / High Current
G5-SOURCE DC Sources High Voltage / High Current
G5-REGEN DC Loads High Voltage / High Current
G5-CYCLER Battery Cyclers High Voltage / High Current

EtherCAT Interface for the G5 Series

If you already have modules onsite, then the interface can be retro-enabled. Contact ETPS today to find out more.

Back to News & Events

G5-RSS

HV Modular Bidirectional DC Power Systems

With the ability to source or sink DC power up to high voltage and currents, the G5-RSS is ideal for cycling and emulating energy storage devices.

G5-RSS

HV Modular Bidirectional DC Power Systems

	Min	Max
Power:	0 to 9kW	0 to 6MW This maximum is achieved by using units in master-slave.
Voltage:	0 to 500VDC	0 to 3000VDC Configurations >1500V are possible with a centre tapped earth.
Current:	0 to ±54A	0 to ±19440A This maximum is achieved by using units in master-slave.

Standard Control:	Analogue, Ethernet, USB
Optional Control:	Touchscreen HMI, CAN, EtherCAT

View Product

or call 01246 452909 to discuss this product

G5-RSS-HC

High Current Bidirectional Power Systems

With the ability to source or sink DC power up to high voltage and currents, the G5-RSS-HC is ideal for cycling and emulating energy storage devices.

G5-RSS-HC

High Current Bidirectional Power Systems

	Min	Max
Power:	0 to 9kW	0 to 6MW This maximum is achieved by using units in master-slave.
Voltage:	0 to 60VDC 60V SELV modules are optionally available.	0 to 1280VDC Configurations >640V are possible with a centre tapped earth.
Current:	0 to ±338A	0 to ±121680A This maximum is achieved by using units in master-slave.

Standard Control:	Analogue, Ethernet, USB
Optional Control:	Touchscreen HMI, CAN, EtherCAT

View Product

or call 01246 452909 to discuss this product

G5-SOURCE

HV Modular Programmable DC Power Systems

With the ability to source DC power up to high voltage and currents, the G5-SOURCE is ideal for emulating energy storage devices.

G5-SOURCE

HV Modular Programmable DC Power Systems

	Min	Max
Power:	0 to 9kW	0 to 6MW This maximum is achieved by using units in master-slave.
Voltage:	0 to 500V	0 to 3000V Configurations >1500V are possible with a centre tapped earth.
Current:	0 to 54A	0 to 19440A This maximum is achieved by using units in master-slave.

Standard Control:	Analogue, Ethernet, USB
Optional Control:	Touchscreen HMI, CAN, EtherCAT

View Product

or call 01246 452909 to discuss this product

G5-SOURCE-HC

Modular High Current DC Sources

With the ability to source high currents up to tens of kiloamps, the G5-SOURCE-HC is ideal for short-circuit testing and pulsing applications.

G5-SOURCE-HC

Modular High Current DC Sources

	Min	Max
Power:	0 to 9kW	0 to 6MW This maximum is achieved by using units in master-slave.
Voltage:	0 to 60VDC 60V SELV modules are optionally available.	0 to 1280VDC Configurations >640V are possible with a centre tapped earth.
Current:	0 to 338A	0 to 121680A This maximum is achieved by using units in master-slave.

Standard Control:	Analogue, Ethernet, USB
Optional Control:	Touchscreen HMI, CAN, EtherCAT

View Product

or call 01246 452909 to discuss this product

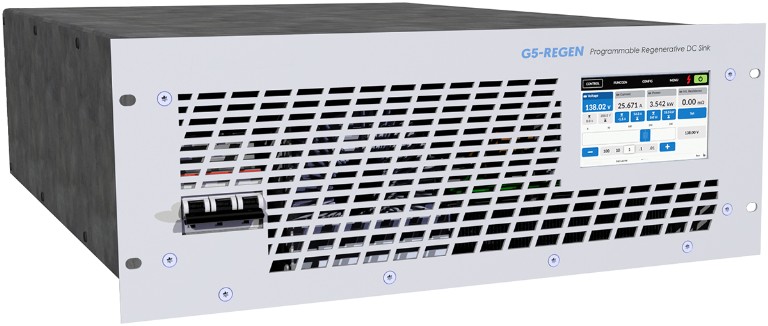

G5-REGEN

Modular Regenerative DC Loads

With the ability to sink DC power up to high voltage and currents, the G5-REGEN is ideal for testing energy storage devices.

G5-REGEN

Modular Regenerative DC Loads

	Min	Max
Power:	0 to 18kW	0 to 6MW This maximum is achieved by using units in master-slave.
Voltage:	3 to 500VDC	16 to 3000VDC Configurations >1500V are possible with a centre tapped earth.
Current:	0 to 54A	0 to 19440A This maximum is achieved by using units in master-slave.

Standard Control:	Analogue, Ethernet, USB
Optional Control:	Touchscreen HMI, CAN, EtherCAT

View Product

or call 01246 452909 to discuss this product

G5-REGEN-HC

Modular High Current DC Loads

With the ability to sink DC power up to high currents, the G5-REGEN-HC is ideal for testing low voltage energy storage devices. Modules are stackable to over 2MW.

G5-REGEN-HC

Modular High Current DC Loads

	Min	Max
Power:	0 to 9kW	0 to 6MW This maximum is achieved by using units in master-slave.
Voltage:	1 to 80VDC	16 to 1280VDC Configurations >640V are possible with a centre tapped earth.
Current:	0 to 338A	0 to 121680A This maximum is achieved by using units in master-slave.

Standard Control:	Analogue, Ethernet, USB
Optional Control:	Touchscreen HMI, CAN, EtherCAT

View Product

or call 01246 452909 to discuss this product

G5-CYCLER

High Voltage Modular Battery Cyclers

G5-CYCLER modules are stackable up to 3kV/5MW. Specific charge/discharge cycles can be programmed via software or interfaces.

G5-CYCLER

High Voltage Modular Battery Cyclers

	Min	Max
Power:	0 to 9kW	0 to 6MW This maximum is achieved by using units in master-slave.
Voltage:	0 to 500VDC	0 to 3000VDC Configurations >1500V are possible with a centre tapped earth.
Current:	0 to ±54A	0 to ±19440A This maximum is achieved by using units in master-slave.

Standard Control:	Analogue, CAN, Ethernet, USB
Optional Control:	Touchscreen HMI, EtherCAT

View Product

or call 01246 452909 to discuss this product

G5-CYCLER-HC

High Current Modular Battery Cyclers

With the ability to provide charge/discharge currents into the kiloamp range, the G5-CYCLER-HC is ideal for cycling hybrid energy storage devices.

G5-CYCLER-HC

High Current Modular Battery Cyclers

	Min	Max
Power:	0 to 9kW	0 to 6MW This maximum is achieved by using units in master-slave.
Voltage:	0 to 60VDC 60V SELV modules are optionally available.	0 to 1280VDC Configurations >640V are possible with a centre tapped earth.
Current:	0 to ±338A	0 to ±121680A This maximum is achieved by using units in master-slave.

Standard Control:	Analogue, CAN, Ethernet, USB
Optional Control:	Touchscreen HMI, EtherCAT

View Product

or call 01246 452909 to discuss this product
