DC Sources
We pride ourselves on being specialists in the world of compact programmable DC sources. Our precision products are available as linear or switch mode.
With one of the most comprehensive selections of DC power supplies on the market, the ETPS team can engineer a product tailored exactly to your project. Our standard units offer a wide range of current, voltage and power outputs to choose from. If your application requires something a little non-standard then we will look to provide a custom solution.
Built in either a benchtop or rackmounting case, every DC source is provided with constant voltage and constant current modes. Where more functionality is needed, selected models also have adjustable resistance, constant power and PV simulation modes.
Our units come with front panel control for simple programming, alongside a variety of computer interfaces for remote control and monitoring. Analogue, RS-232, RS-485, Ethernet or IEEE 488.2 can be specified for most systems. Industry specific interfaces such as CAN are possible for the G5-SOURCE, which is particularly popular in automotive applications.
For more complex test requirements, we offer application GUIs that program ETPS hardware to replicate real world behaviour of a power component. This allows specific sections of a circuit to be isolated and researched. Many industry standards are pre-installed for areas such as battery emulation and powertrain testing.
Read more CloseDid you know...
- We have a dedicated range of battery chargers.
- Bidirectional DC sink/source systems with mains recycling are available.
- If you need something non-standard, we will look to provide a custom unit. Common adaptations include bespoke output ranges, flight case integrations and ruggedised systems.

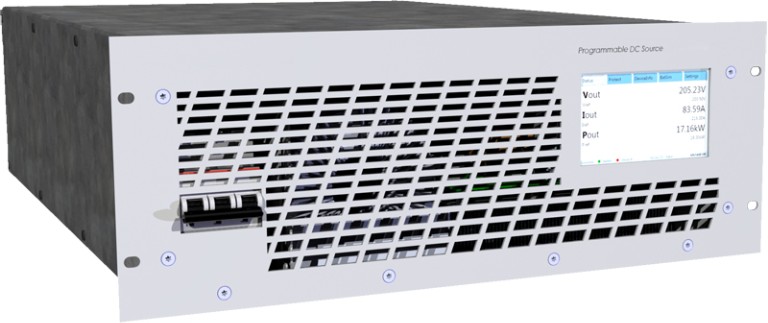

G5-SOURCE
HV Modular Programmable DC Power Systems
| Min | Max | |
|---|---|---|
| Power: | 0 to 9kW | 0 to 6MW This maximum is achieved by using units in master-slave. |
| Voltage: | 0 to 500V | 0 to 3000V Configurations >1500V are possible with a centre tapped earth. |
| Current: | 0 to 54A | 0 to 19440A This maximum is achieved by using units in master-slave. |
G5-SOURCE
HV Modular Programmable DC Power Systems
| Min | Max | |
|---|---|---|
| Power: | 0 to 9kW | 0 to 6MW This maximum is achieved by using units in master-slave. |
| Voltage: | 0 to 500V | 0 to 3000V Configurations >1500V are possible with a centre tapped earth. |
| Current: | 0 to 54A | 0 to 19440A This maximum is achieved by using units in master-slave. |
| Standard Control: | Analogue, Ethernet, USB |
|---|---|
| Optional Control: | Touchscreen HMI, CAN, EtherCAT |
With the ability to source DC power up to high voltage and currents, the G5-SOURCE is ideal for emulating energy storage devices. Modules are stackable to 2MW, with voltages up to 3000V possible.

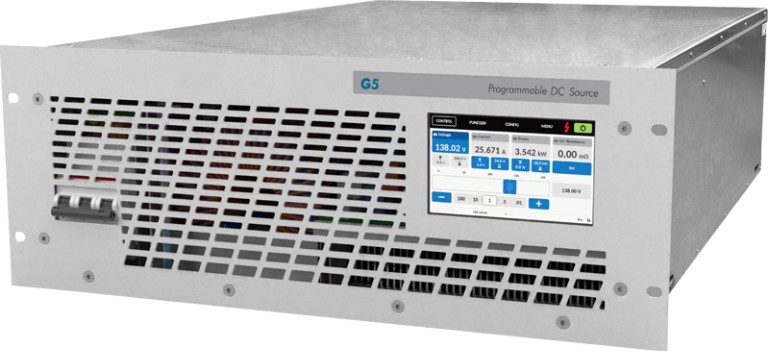

G5-SOURCE-HC
Modular High Current DC Sources
| Min | Max | |
|---|---|---|
| Power: | 0 to 9kW | 0 to 6MW This maximum is achieved by using units in master-slave. |
| Voltage: | 0 to 60VDC 60V SELV modules are optionally available. | 0 to 1280VDC Configurations >640V are possible with a centre tapped earth. |
| Current: | 0 to 338A | 0 to 121680A This maximum is achieved by using units in master-slave. |
G5-SOURCE-HC
Modular High Current DC Sources
| Min | Max | |
|---|---|---|
| Power: | 0 to 9kW | 0 to 6MW This maximum is achieved by using units in master-slave. |
| Voltage: | 0 to 60VDC 60V SELV modules are optionally available. | 0 to 1280VDC Configurations >640V are possible with a centre tapped earth. |
| Current: | 0 to 338A | 0 to 121680A This maximum is achieved by using units in master-slave. |
| Standard Control: | Analogue, Ethernet, USB |
|---|---|
| Optional Control: | Touchscreen HMI, CAN, EtherCAT |
With the ability to source high currents up to tens of kiloamps, the G5-SOURCE-HC is ideal for short-circuit testing, pulsing applications and powering electromagnets. Modules are stackable to 5MW.

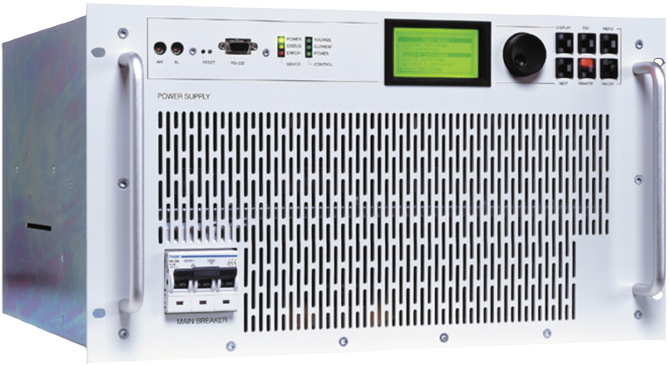

LAB-TC
Advanced High Power DC Sources
| Min | Max | |
|---|---|---|
| Power: | 0 to 10kW | 0 to 2MW This maximum is achieved by using units in master-slave. |
| Voltage: | 0 to 52V | 0 to 2000V Configurations >1500V are possible with a centre tapped earth. |
| Current: | 0 to 13A | 0 to 44800A This maximum is achieved by using units in master-slave. |
LAB-TC
Advanced High Power DC Sources
| Min | Max | |
|---|---|---|
| Power: | 0 to 10kW | 0 to 2MW This maximum is achieved by using units in master-slave. |
| Voltage: | 0 to 52V | 0 to 2000V Configurations >1500V are possible with a centre tapped earth. |
| Current: | 0 to 13A | 0 to 44800A This maximum is achieved by using units in master-slave. |
| Standard Control: | Analogue, RS-232 |
|---|---|
| Optional Control: | HMI, CAN, Ethernet, IEEE 488.2, Optolink, RS-422, USB |
The LAB-TC range is a highly advanced series of modular DC sources. The internal resistance can be adjusted making the units ideal for battery simulation. An optional function generator allows virtually any conceivable DC waveform to be created.
LAB-HP
Compact High Power DC Source
| Min | Max | |
|---|---|---|
| Power: | 0 to 3kW | 0 to 504kW This maximum is achieved by using units in master-slave. |
| Voltage: | 0 to 15V | 0 to 2000V Different nominals can be selected via the options table. |
| Current: | 0 to 4.7A | 0 to 18000A This maximum is achieved by using units in master-slave. |
LAB-HP
Compact High Power DC Source
| Min | Max | |
|---|---|---|
| Power: | 0 to 3kW | 0 to 504kW This maximum is achieved by using units in master-slave. |
| Voltage: | 0 to 15V | 0 to 2000V Different nominals can be selected via the options table. |
| Current: | 0 to 4.7A | 0 to 18000A This maximum is achieved by using units in master-slave. |
| Standard Control: | Touchscreen HMI, Ethernet, Isolated Analogue, RS-232 |
|---|---|
| Optional Control: | IEEE 488.2, RS-485, SD Card, USB |
The LAB-HP provides up to 21kW of power in a 3U high case. Output values can be preset and read prior to release. The large touchscreen display indicates all relevant output quantities simultaneously. Each unit has an RS-232 and isolated analogue interface as standard.
LAB-AUTO
Autoranging DC Power Supply
| Min | Max | |
|---|---|---|
| Power: | 0 to 5kW | 0 to 18kW |
| Voltage: | 0 to 80V | 0 to 1950V |
| Current: | 0 to 23A | 0 to 540A |
LAB-AUTO
Autoranging DC Power Supply
| Min | Max | |
|---|---|---|
| Power: | 0 to 5kW | 0 to 18kW |
| Voltage: | 0 to 80V | 0 to 1950V |
| Current: | 0 to 23A | 0 to 540A |
| Standard Control: | Touchscreen HMI, Ethernet |
|---|---|
| Optional Control: | Isolated Analogue, RS-422, RS-485, USB |
Each LAB-AUTO has an extensive feature set. The unit's autoranging output allows for many more voltage/current combinations than a traditional DC source. Constant voltage, current and power modes are provided as standard.
LAB-S
Rackmounting Linear DC Power Supplies
| Min | Max | |
|---|---|---|
| Power: | 0 to 500W | 0 to 4.5kW |
| Voltage: | 0 to 35V | 0 to 150V |
| Current: | 0 to 3A | 0 to 100A |
LAB-S
Rackmounting Linear DC Power Supplies
| Min | Max | |
|---|---|---|
| Power: | 0 to 500W | 0 to 4.5kW |
| Voltage: | 0 to 35V | 0 to 150V |
| Current: | 0 to 3A | 0 to 100A |
| Standard Control: | HMI |
|---|---|
| Optional Control: | Analogue, IEEE 488.2, Isolated Analogue, RS-232, RS-485, USB |
The LAB-S range of linear DC sources are ideal for applications where high power coupled with fast and precise regulation is paramount. A thyristor pre-regulation circuit provides the DC to the linearly controlled MOS output stage ensuring a very low ripple.
LAB-DSP
High Density DC Power Source
| Min | Max | |
|---|---|---|
| Power: | 0 to 750W | 0 to 3kW |
| Voltage: | 0 to 6V | 0 to 600V |
| Current: | 0 to 1.25A | 0 to 400A |
LAB-DSP
High Density DC Power Source
| Min | Max | |
|---|---|---|
| Power: | 0 to 750W | 0 to 3kW |
| Voltage: | 0 to 6V | 0 to 600V |
| Current: | 0 to 1.25A | 0 to 400A |
| Standard Control: | HMI, Analogue, IEEE 488.2, RS-485 |
|---|---|
| Optional Control: | Ethernet, Isolated Analogue |
The rackmounting LAB-DSP product family has 45 models covering a range of voltages and current. Outputs are available at 750W, 1500W and 3000W. Constant voltage and constant current mode are provided. OVP and OCP levels are adjustable.
LAB-SMP
Compact 1U Switch Mode Power Supply
| Min | Max | |
|---|---|---|
| Power: | 0 to 1.2kW | 0 to 2.4kW |
| Voltage: | 0 to 15V | 0 to 1200V |
| Current: | 0 to 1A | 0 to 160A |
LAB-SMP
Compact 1U Switch Mode Power Supply
| Min | Max | |
|---|---|---|
| Power: | 0 to 1.2kW | 0 to 2.4kW |
| Voltage: | 0 to 15V | 0 to 1200V |
| Current: | 0 to 1A | 0 to 160A |
| Standard Control: | HMI, Isolated Analogue, RS-232 |
|---|---|
| Optional Control: | Ethernet, IEEE 488.2, RS-485, SD Card, USB |
Each unit features constant voltage, power, resistance and current operating modes. A dedicated PV simulation mode is also standard. The LAB-SMP also allows the voltage and current outputs to be preset and read before applying them to the load.
LAB-DSPH
Benchtop DC Power Supply
| Min | Max | |
|---|---|---|
| Power: | 0 to 750W | 0 to 1.5kW |
| Voltage: | 0 to 6V | 0 to 600V |
| Current: | 0 to 1.25A | 0 to 200A |
LAB-DSPH
Benchtop DC Power Supply
| Min | Max | |
|---|---|---|
| Power: | 0 to 750W | 0 to 1.5kW |
| Voltage: | 0 to 6V | 0 to 600V |
| Current: | 0 to 1.25A | 0 to 200A |
| Standard Control: | HMI, Analogue, IEEE 488.2, RS-485 |
|---|---|
| Optional Control: | Ethernet, Isolated Analogue |
LAB-DSPH units are packaged in a convenient benchtop case with outputs of either 750W or 1.5kW. 15 different models are available at each power level. Constant voltage and constant current mode are provided. OVP and OCP levels are adjustable.
